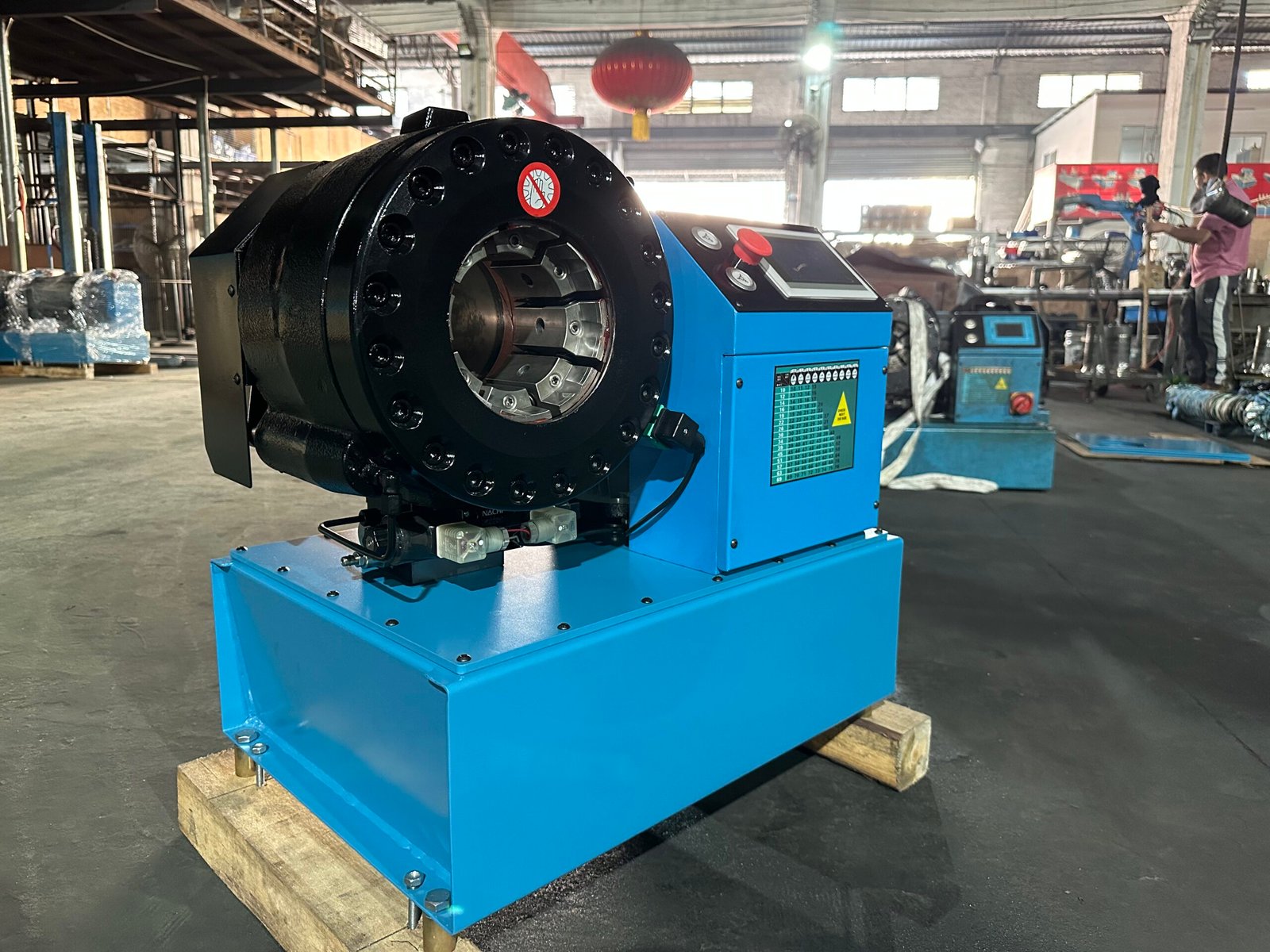

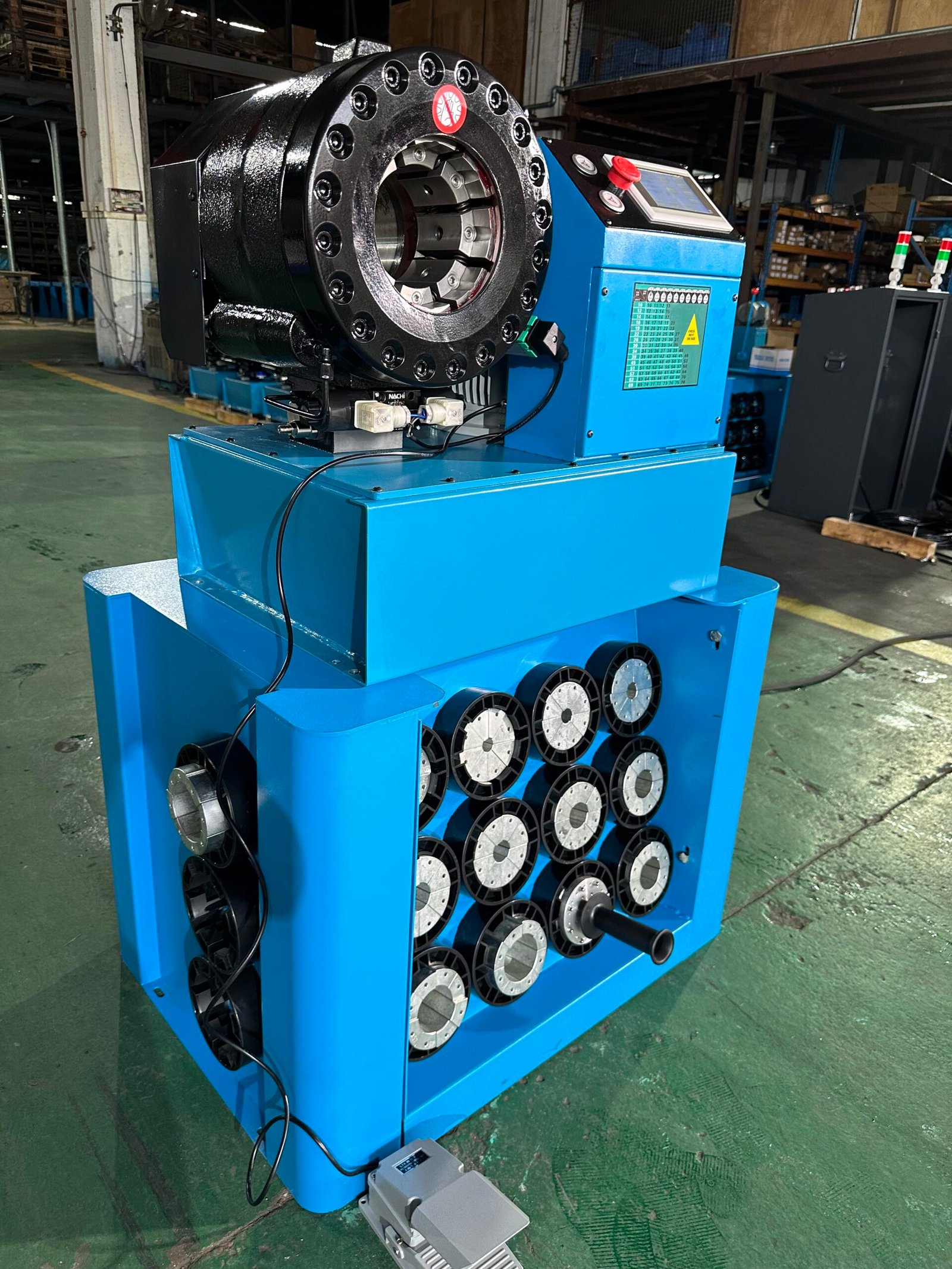

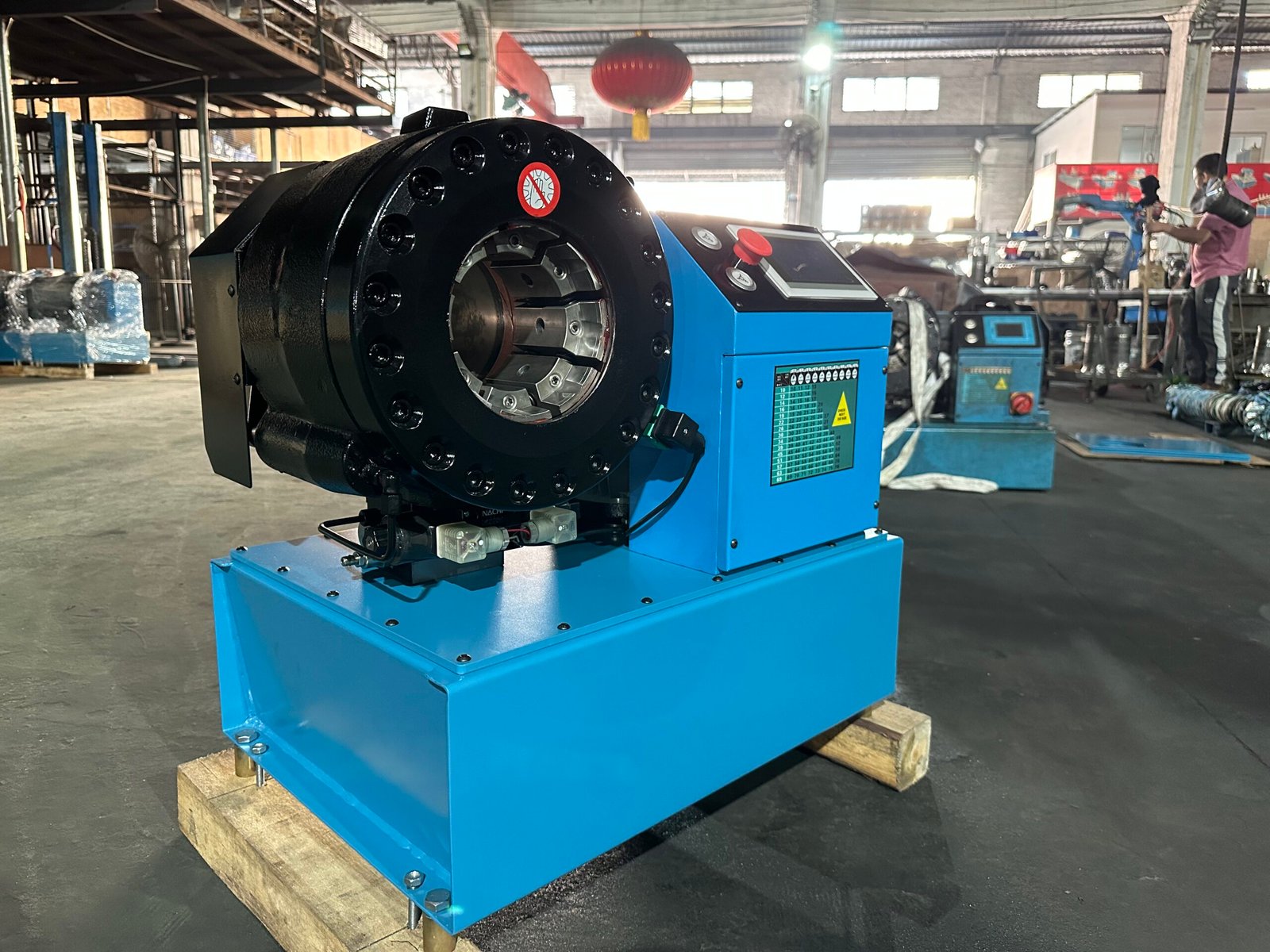

Quick Change Mold Hydraulic Hose Crimping Machine Pipe Crimping Tool
Hose Crimping Machine Pipe Crimping Tool advantage:
Consistency and Precision: Crimping machines provide a high level of accuracy and repeatability, ensuring that each hose assembly is consistent in quality. This reduces the risk of leaks or failures due to improper fittings.
| Equipment | Item | Spec |
| Upgraded Ultrathin Hose Crimping Machine GT-32 |
Hose crimping Range | ∅6-∅51 4 layers steel |
| 1.2’’ hose:6 layers steel | ||
| 2” hose: 4 layers steel | ||
| 2.5” hose:2 layers steel | ||
| Hose Max Crimping Range(mm) | 79mm | |
| Applicable Materials | Carbon steel(Iron), stainless steel, aluminum, copper,rubber | |
| Crimping maximum opening(without dies) | 130mm | |
| Maximum stroke | 30mm | |
| Maximum pressure （Mpa) | 30 | |
| Motor power(kw) | 380V/220V/4KW | |

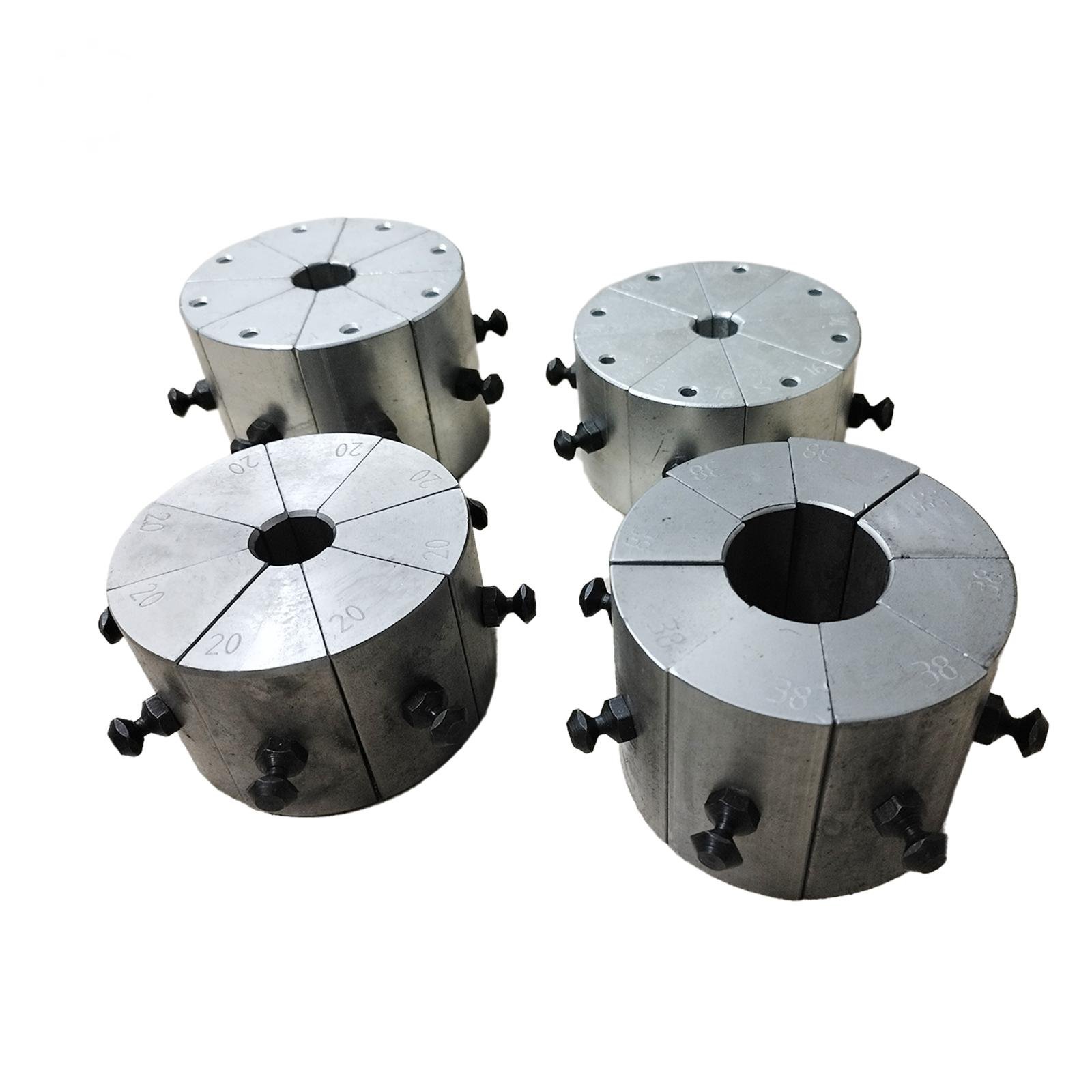

| Customized mold | 13 sets | |
| Equipment dimension(mm) | 630*600*450 | |
| Equipment package dimension(mm) | 860*860*1270 | |
| Equipment Net Weight(kgs) | 205KGS | |
| Equipment Gross Weight(kgs) | 196KGS | |
| Equipment frame Gross weight(kgs) | 60KGS | |
| Total Gross Weight(kgs) | 265KGS | |
| EXW Price(USD) | 3342 |
Efficiency and Speed: These machines streamline the hose assembly process, allowing for faster production compared to manual methods. This increased efficiency can lead to higher throughput and reduced labor costs.
Improved Safety: Properly crimped hoses are less likely to fail under pressure, reducing the risk of accidents and injuries. Reliable crimping ensures that hoses can handle the stresses of their application without issues.
Durability: Crimped connections are generally more durable and resistant to wear and tear. This extends the lifespan of the hose assemblies and decreases the need for frequent replacements or repairs.
-
- GT-10
Versatility: Modern crimping machines can handle a wide range of hose sizes and types, including hydraulic, pneumatic, and industrial hoses. This versatility allows users to work with various applications using a single machine.
Cost-Effectiveness: While there is an upfront investment in a crimping machine, the long-term benefits in terms of reduced labor, fewer failures, and extended hose life can lead to significant cost savings.
