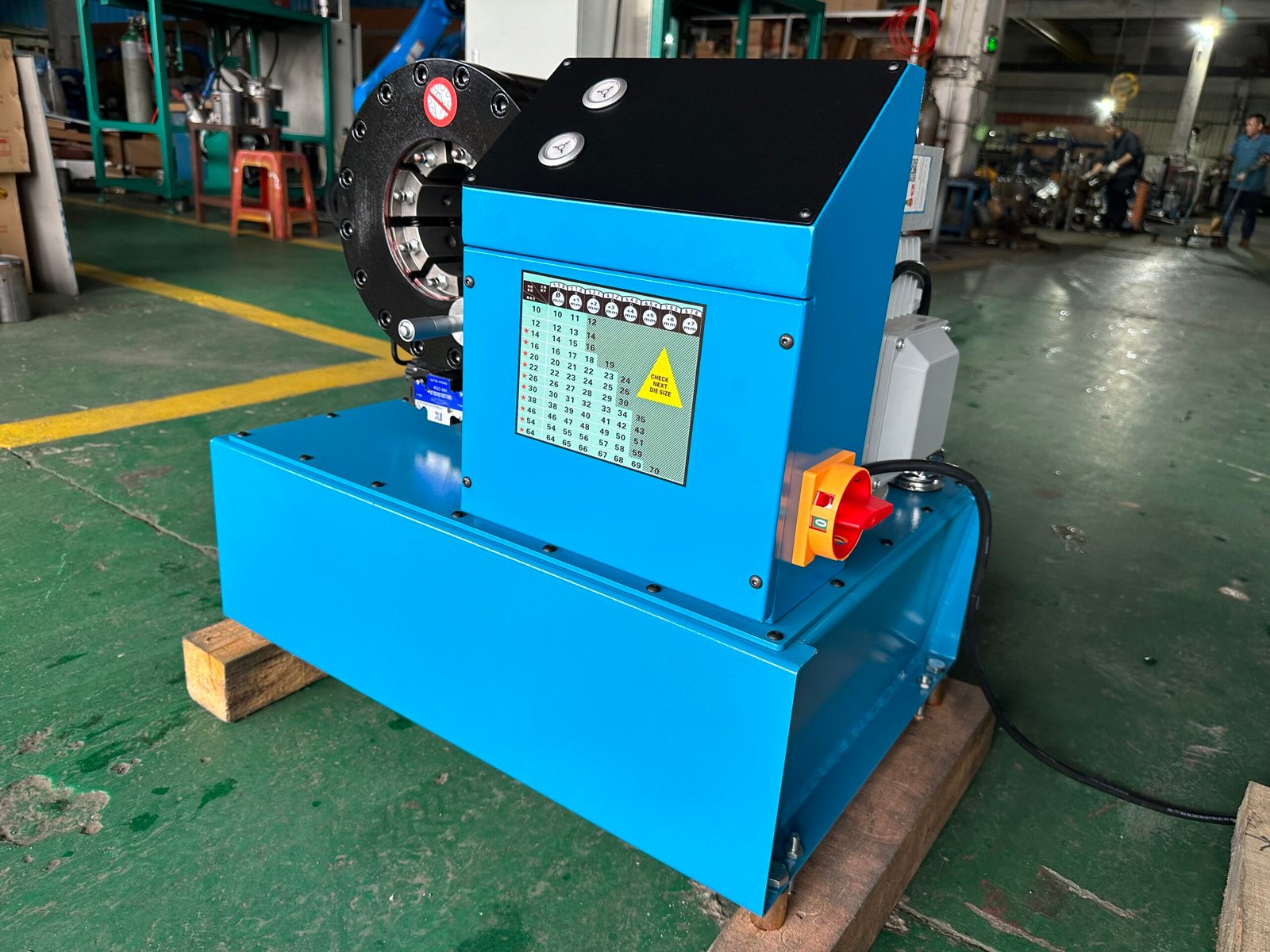

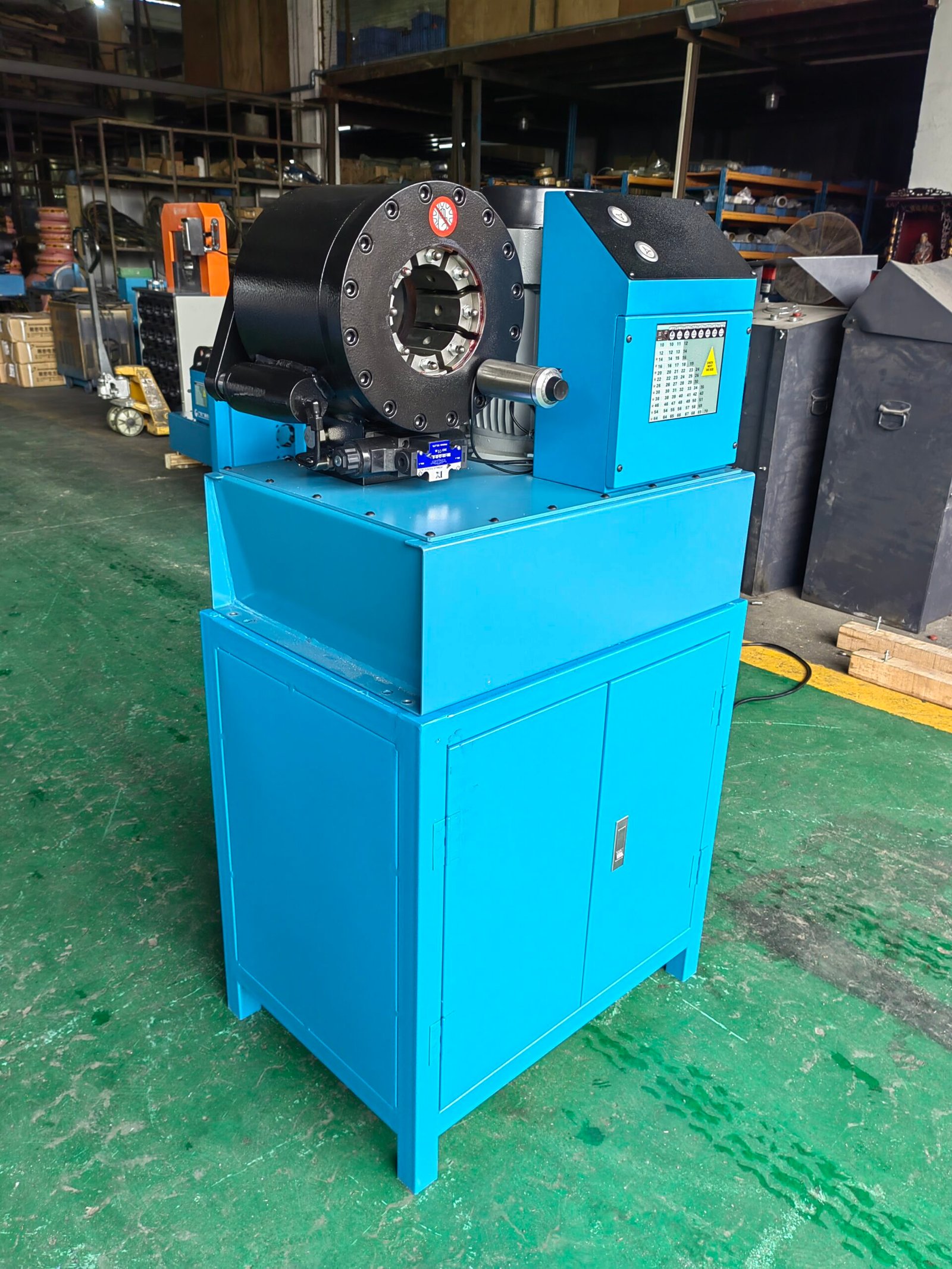

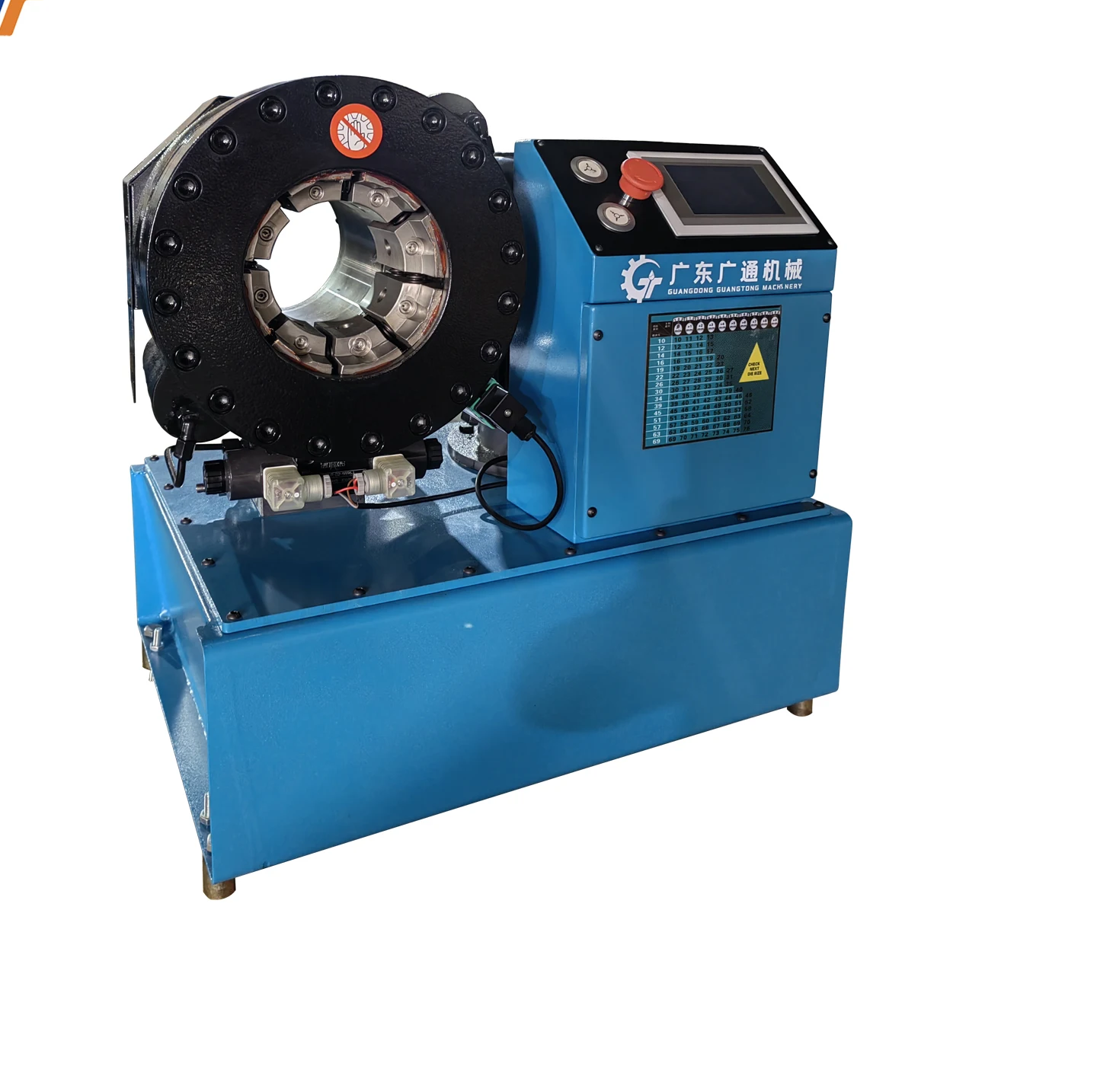

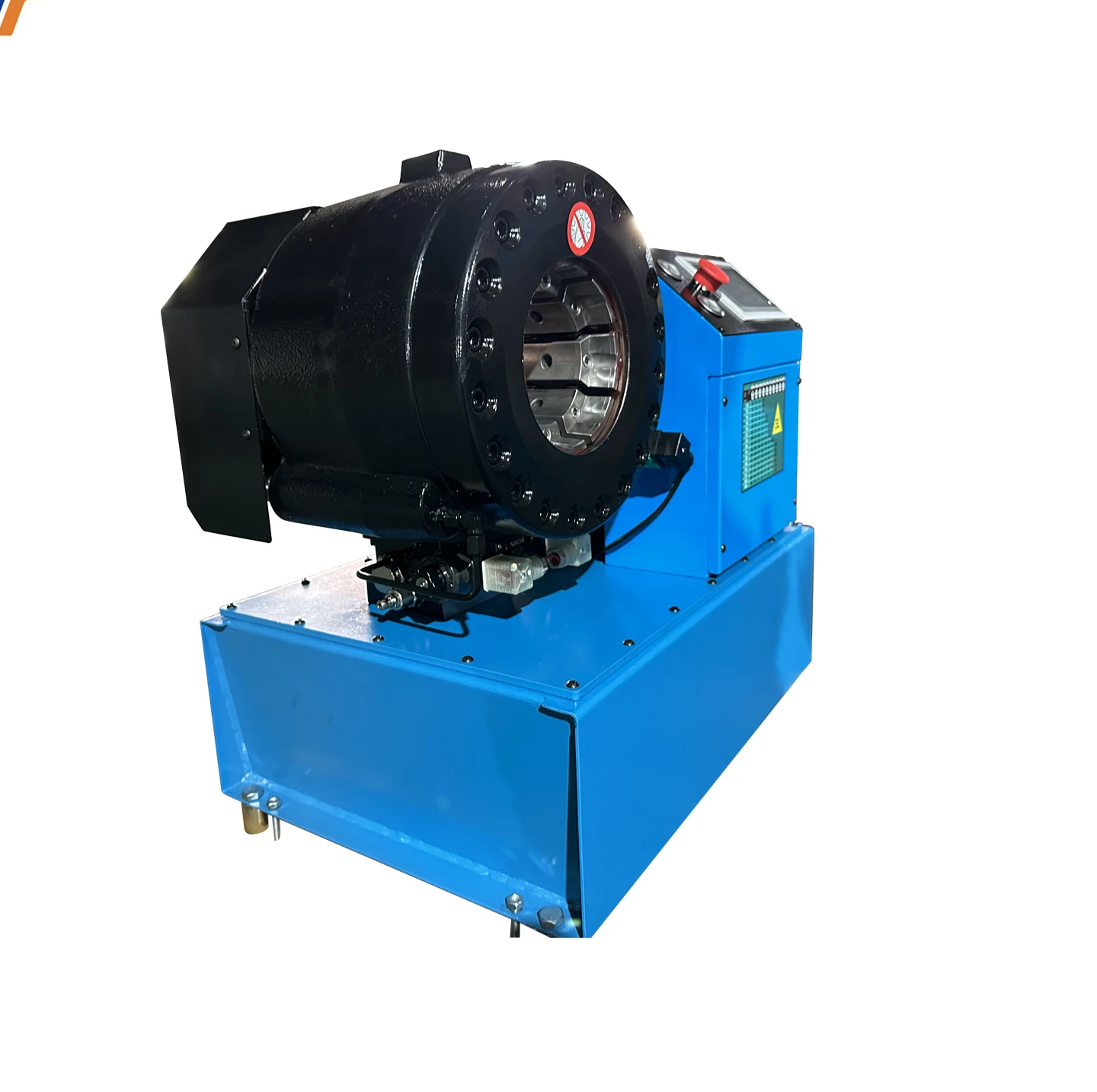

GT-32 High Crimping Force Precision Hydraulic Hose Crimping Machine
High Crimping Force Precision Hydraulic Hose Crimping Machine offer several advantages, especially in heavy-duty, high-pressure applications where durability, precision, and reliability are essential. Here’s a breakdown of their key benefits:
High Crimping Force
Hydraulic hose crimping machines are designed to handle high-pressure hoses and thick materials, applying greater force than electric or manual machines. This makes them ideal for crimping large-diameter hoses and those used in demanding applications like construction, mining, and agriculture.
-
- GT-10
-
- GT-10
Hose crimping machine Spec&applications:
| Equipment | Item | Spec |
| GT-32;GT-32T | Hose crimping Range | ∅6-∅51 4 layers steel |
| 1.2’’ hose:6 layers steel | ||
| 2” hose: 4 layers steel | ||
| 2.5” hose:2 layers steel | ||
| Hose Max Crimping Range(mm) | 79mm | |
| Applicable Materials | Carbon steel(Iron), stainless steel, aluminum, copper,rubber | |
| Crimping maximum opening(without die) | 130mm | |
| Maximum stroke | 30mm | |
| Maximum pressure （Mpa) | 30 | |
| Motor power(kw) | 380V/220V/4KW | |
| Customized mold | 13 sets | |
| Equipment dimension(mm) | 630×600×450 | |
| Equipment package dimension(mm) | 860*860*1270 | |
| Equipment Net Weight(kgs) | 230KGS | |
| Equipment Gross Weight(kgs) | 268KGS | |
| Equipment frame Gross weight(kgs) | 60KGS | |
| Total Gross Weight(kgs) | 328KGS | |
| EXW Price(USD) | 3285 |
Precision and Consistency
Hydraulic crimping machines provide precise control over crimping pressure, ensuring a uniform crimp across the entire fitting. This level of consistency improves the reliability and lifespan of crimped hoses, reducing the risk of leaks or blowouts under high-pressure conditions.
Versatility in Hose Types and Sizes:
These machines can crimp a wide variety of hoses, including high-pressure hydraulic hoses, thermoplastic hoses, and other reinforced types. Many models are designed with interchangeable dies, enabling operators to quickly switch between different hose sizes and fittings..
-
- GT-10
-
- GT-10
Hose crimping machines play a vital role in ensuring the reliability, safety, and performance of fluid transfer systems across a wide range of industries. Their use helps to create secure and durable hose assemblies, reducing the risk of leaks or failure in critical systems.
