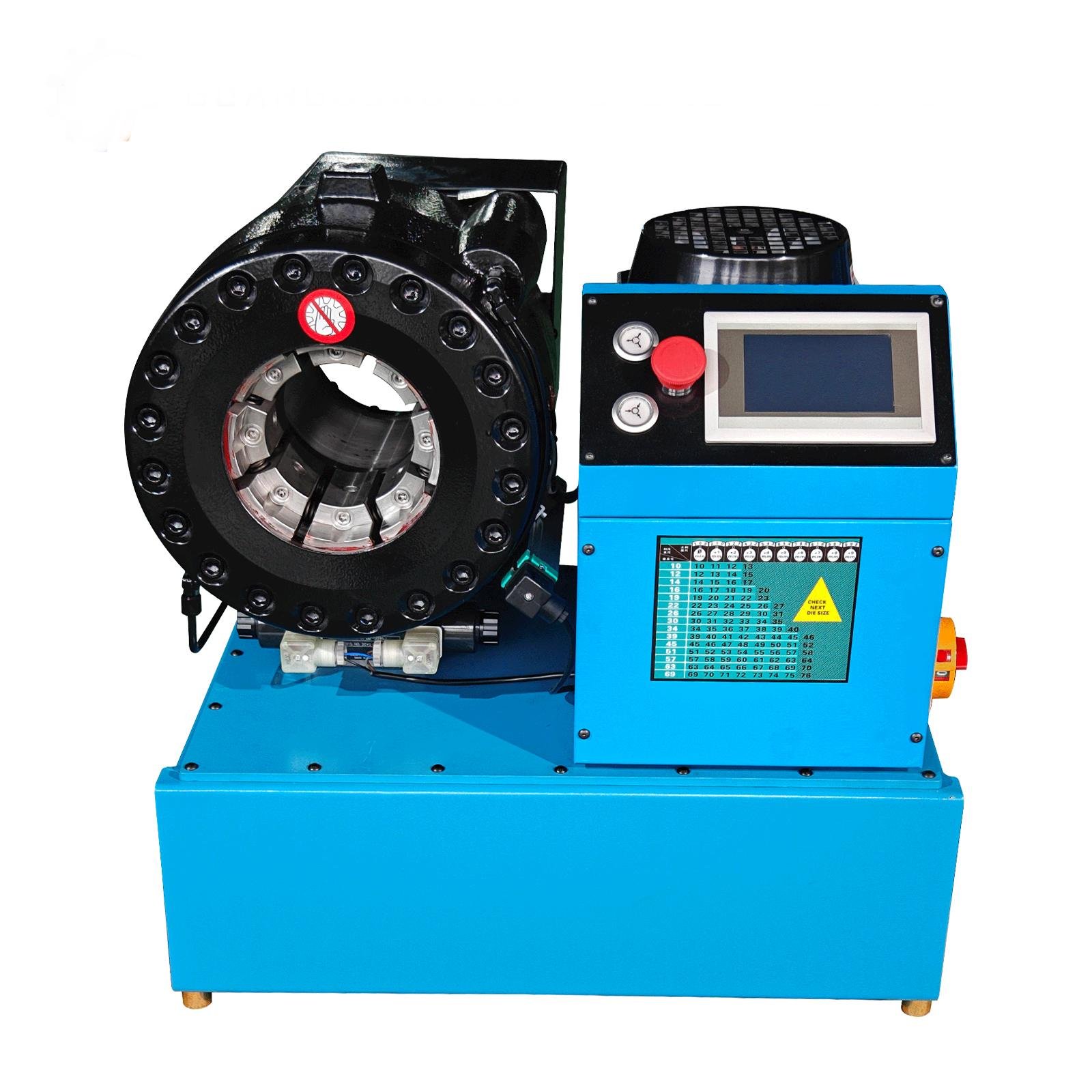

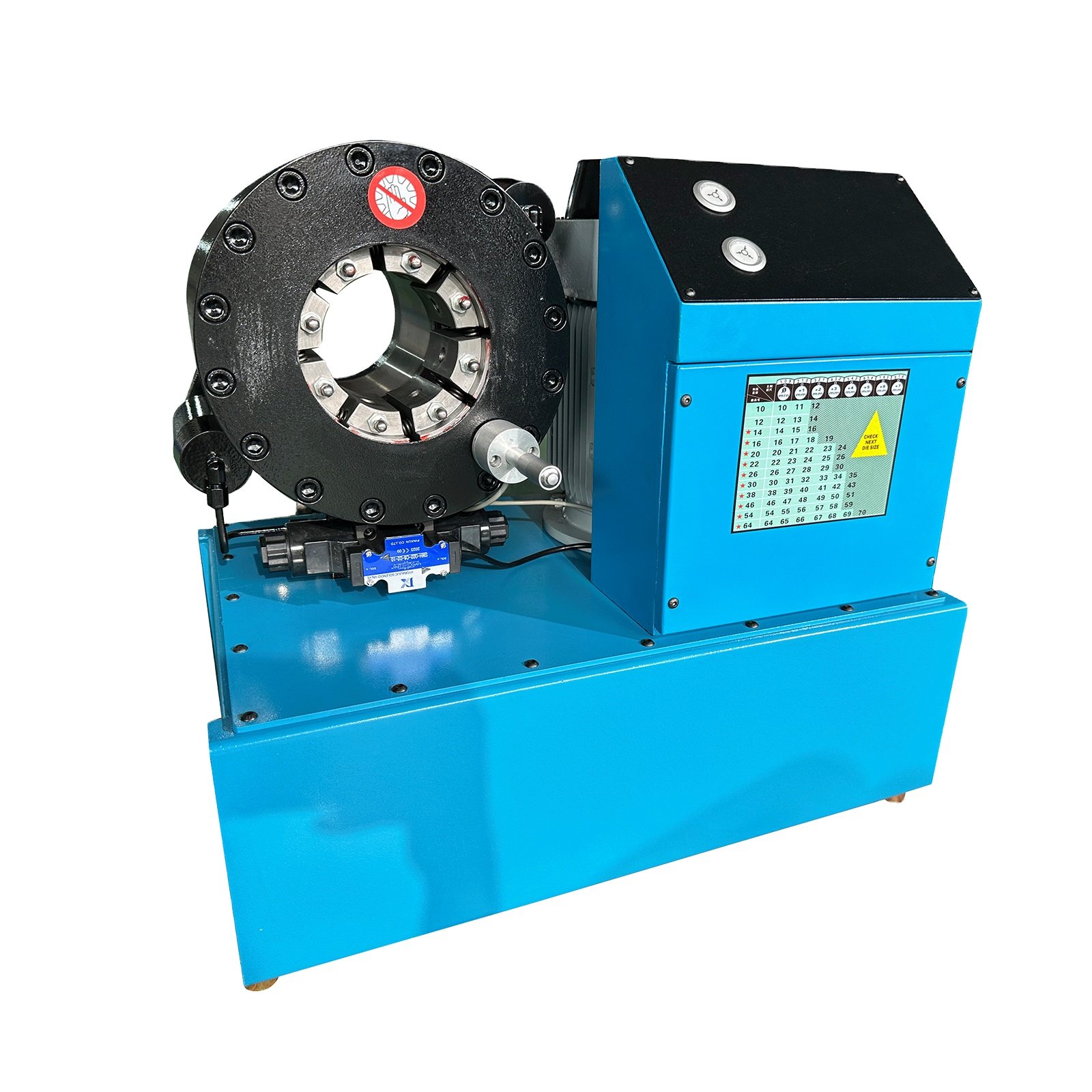

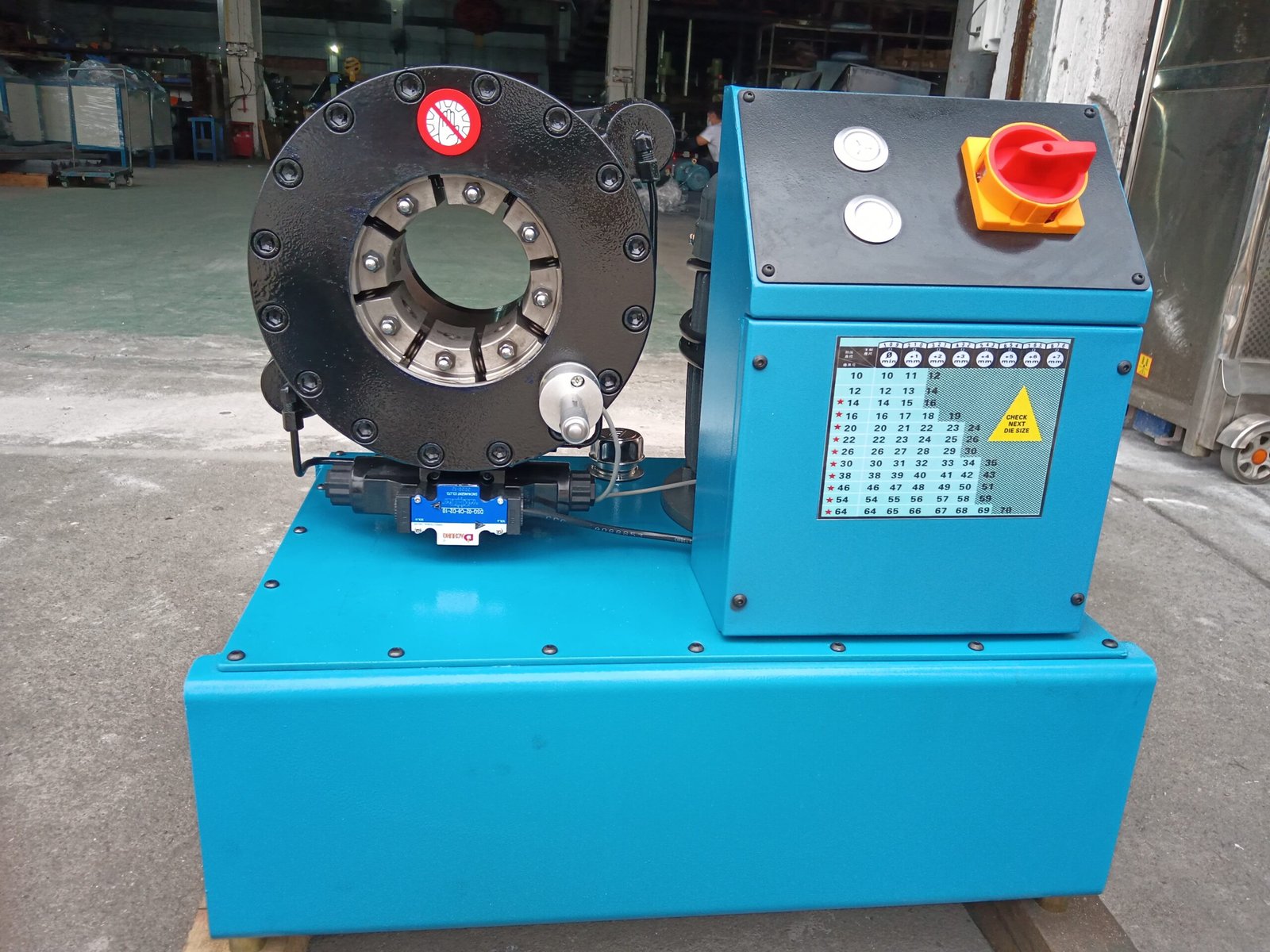

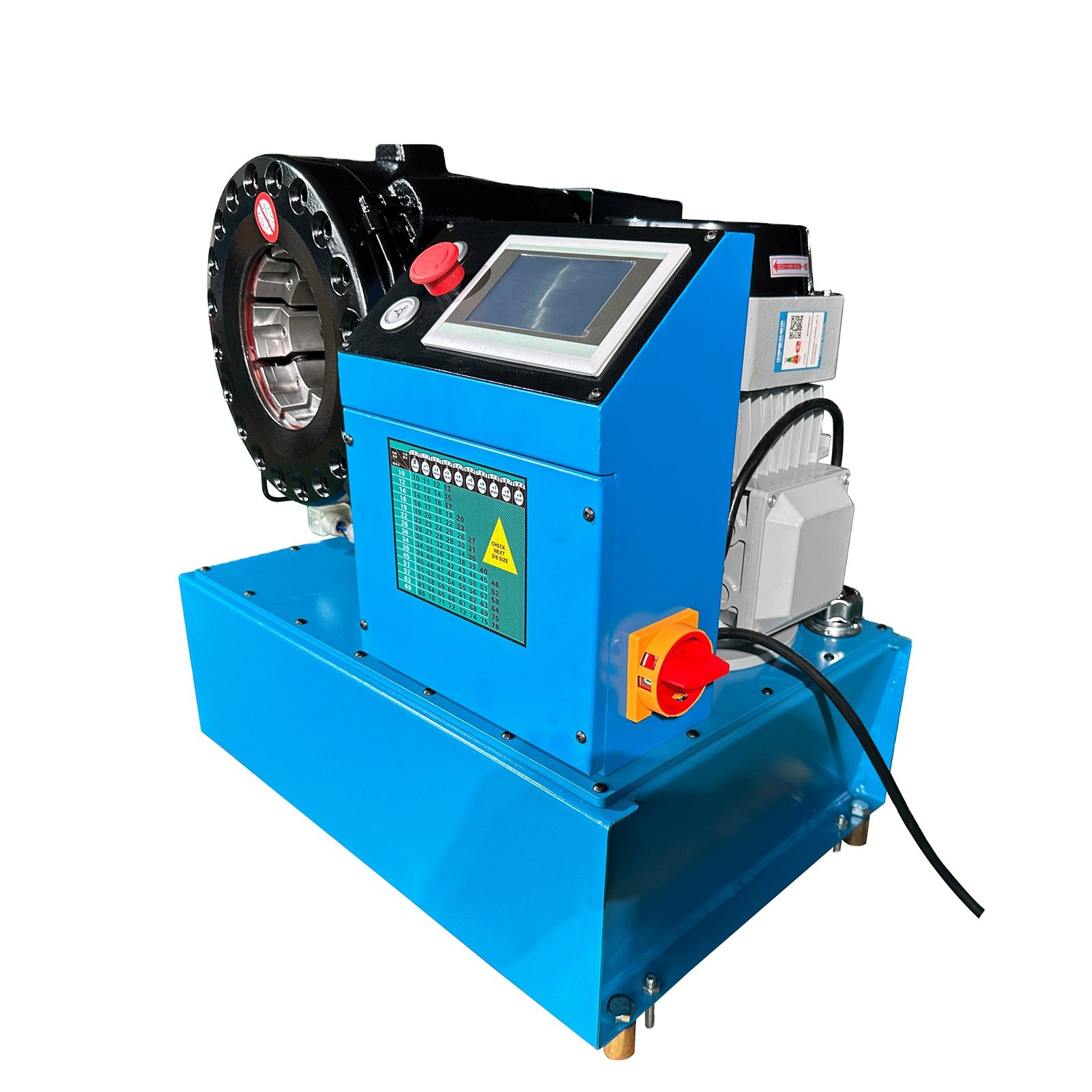

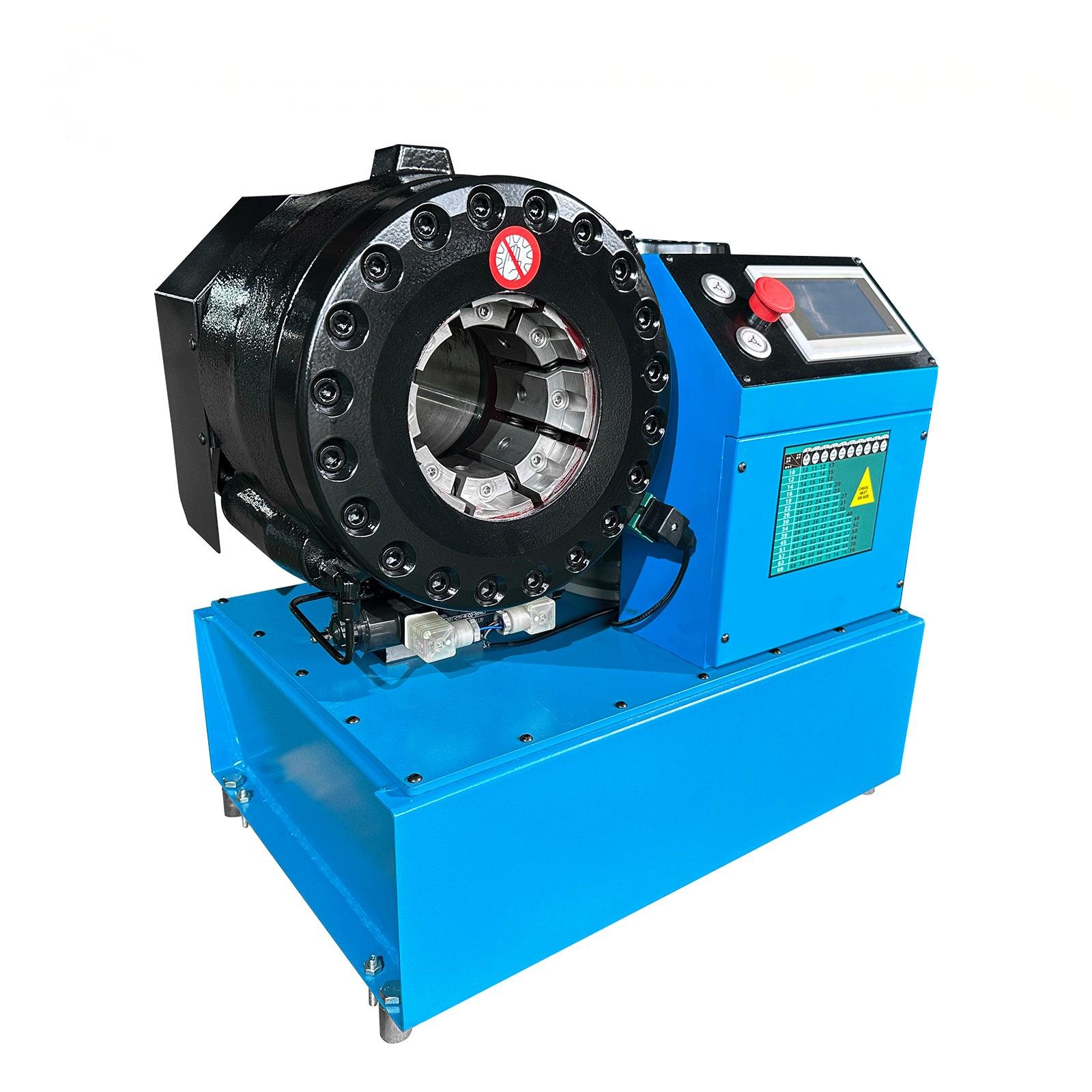

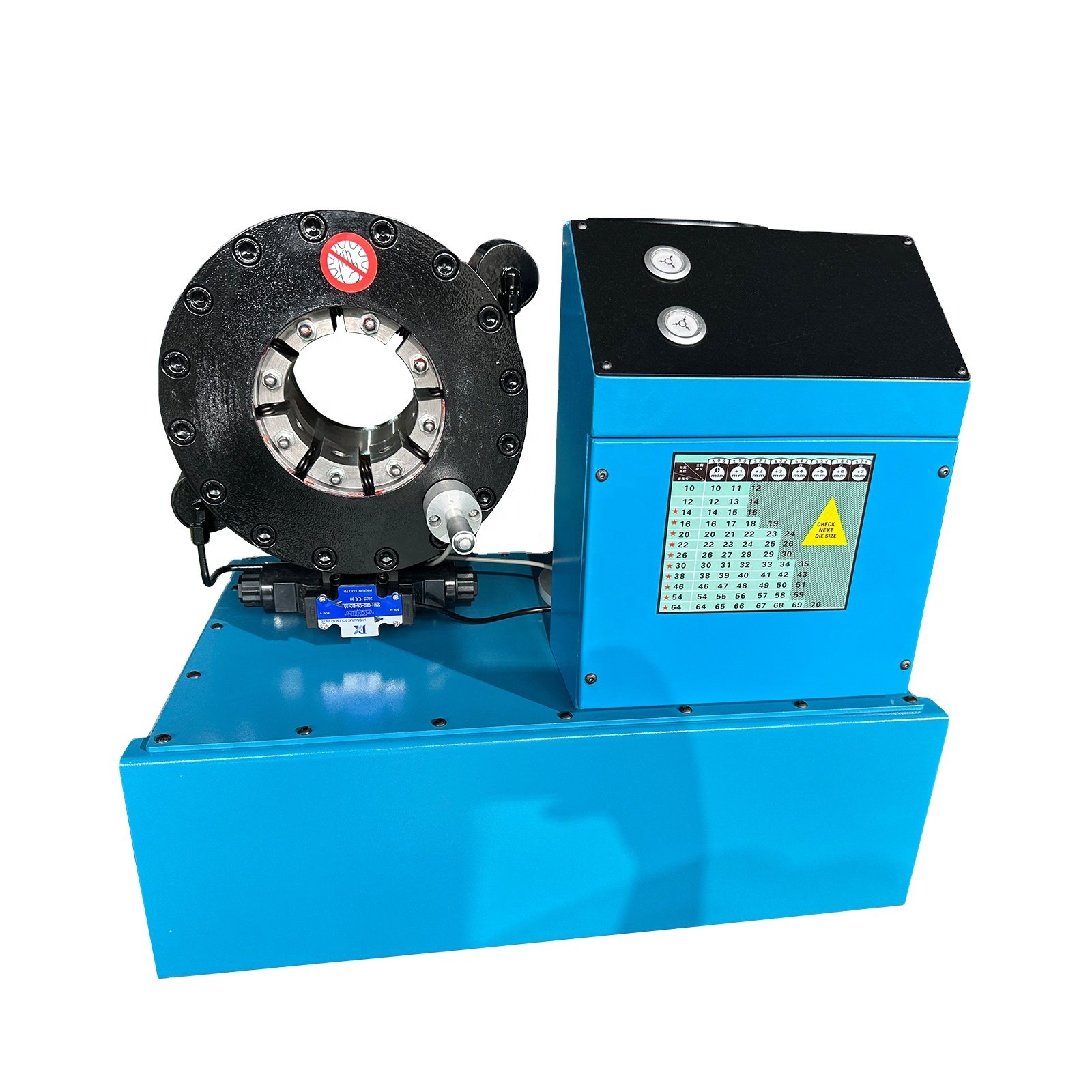

GT-10 Classical Hydraulic Pipe Crimper Hose crimping machine
Pipe Crimper Hose crimping machine advantage:
Consistency and Precision: Crimping machines provide a high level of accuracy and repeatability, ensuring that each hose assembly is consistent in quality. This reduces the risk of leaks or failures due to improper fittings.
Efficiency and Speed: These machines streamline the hose assembly process, allowing for faster production compared to manual methods. This increased efficiency can lead to higher throughput and reduced labor costs.
Equipment | Item | Spec |
Upgraded Ultrathin Hose Crimping Machine GT-90 |
Hose crimping Range | ∅6-∅51 2 layers steel |
2” hose: 2 layers steel | ||
1.5” hose:4 layers steel | ||
Hose Max Crimping Range(mm) | 70mm | |
Applicable Materials | Carbon steel(Iron), stainless steel, aluminum, copper,rubber | |
Crimping maximum opening(without dies) | 117mm | |
Maximum stroke | 25mm | |
Maximum pressure (Mpa) | 30 | |
Motor power(kw) | 380V/220V/3KW | |
Customized mold | 10 sets | |
Equipment dimension(mm) | 630*600*450 | |
Equipment package dimension(mm) | 860*860*1270 | |
Equipment Net Weight(kgs) | 205KGS | |
Equipment Gross Weight(kgs) | 196KGS | |
Equipment frame Gross weight(kgs) | 60KGS | |
Total Gross Weight(kgs) | 265KGS | |
EXW Price(USD) | 1500 |
Improved Safety: Properly crimped hoses are less likely to fail under pressure, reducing the risk of accidents and injuries. Reliable crimping ensures that hoses can handle the stresses of their application without issues.
Durability: Crimped connections are generally more durable and resistant to wear and tear. This extends the lifespan of the hose assemblies and decreases the need for frequent replacements or repairs.
Quality Control: Our crimping machines come with features for quality control, such as calibration and monitoring systems, which help ensure that each crimp meets specified standards.
Ease of Use: Automated crimping machines often come with user-friendly interfaces and programmable settings, making them accessible even for operators with limited experience.
More details please contact us!
