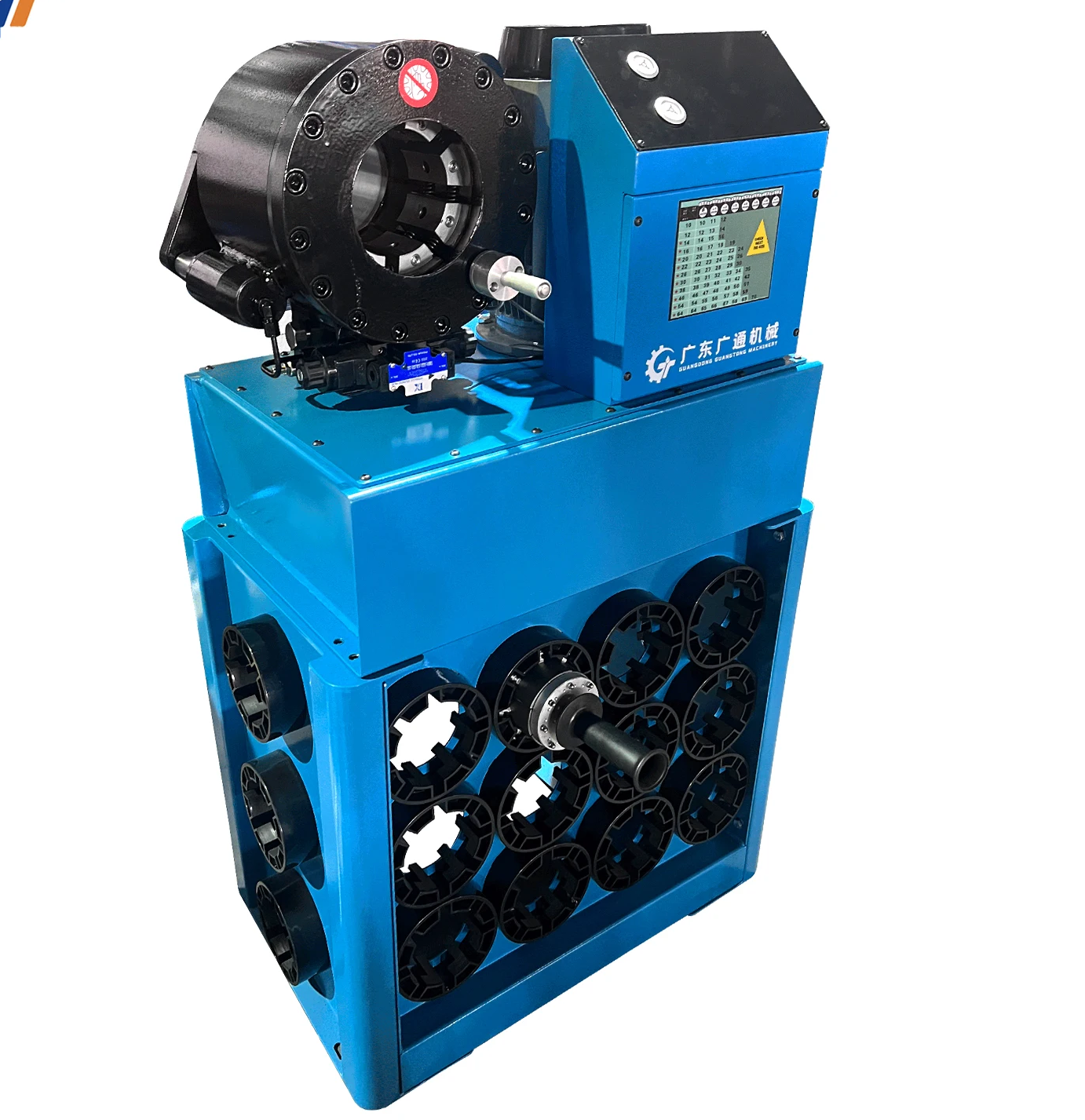

GT-20T Fast Change Mold Hydraulic Pipe Pressing Machine with Frame
About high efficiency hose crimping machine pipe crimping tool, it’s used in the industrial and manufacturing sectors to secure fittings onto hydraulic, pneumatic, or industrial hoses. The process of crimping involves pressing a metal sleeve (crimp) over the hose and fitting to create a secure and leak-proof connection. These machines are critical in industries like construction, automotive, agriculture, mining, and oil & gas, where fluid and air transfer via hoses is essential for operation.
-
- GT-10
-
- GT-10
-
- GT-10
Hose crimping machine Spec&applications:
| Equipment | Item | Spec |
| GT-20;GT-20T | Hose crimping Range | ∅6-∅51 2 layers steel |
| 2” hose: 2 layers steel | ||
| 1.5’’ hose:4 layers steel | ||
| Hose Max Crimping Range(mm) | 70mm | |
| Applicable Materials | Carbon steel(Iron), stainless steel, aluminum, copper,rubber | |
| Crimping maximum opening(without die) | 117mm | |
| Maximum stroke | 26mm | |
| Maximum pressure （Mpa) | 30 | |
| Motor power(kw) | 380V/220V/3KW | |
| Customized mold | 10 sets | |
| Equipment dimension(mm) | 630×600×450 | |
| Equipment package dimension(mm) | 860*860*1270 | |
| Equipment Net Weight(kgs) | 205KGS | |
| Equipment Gross Weight(kgs) | 310KGS | |
| Equipment frame Gross weight(kgs) | 50KGS | |
| Total Gross Weight(kgs) | 265KGS | |
| EXW Price(USD) | 2770 |
Hydraulic Hose Assemblies,Pneumatic Hose Assemblies,Automotive and Fleet Maintenance,Oil & Gas Industry,Agriculture and Irrigation Systems,Mining and Construction Equipment,Marine and Offshore Application,Food and Beverage Industry……
Key Features of Hose Crimping Machines:
Adjustable Crimping Force: Machines can be calibrated for different hose and fitting sizes.
Precision: Ensures consistent and accurate crimping to prevent leaks or failures.
Speed and Efficiency: High-volume crimping machines can quickly produce multiple hose assemblies.
Customizable Dies: Different crimping dies and sizes can be used to match various hose and fitting types.
Automated or Manual Operation: There are automated models for high-volume production and manual ones for more flexible, smaller runs.
-
- oplus_1310752
-
- smart
Hose crimping machines play a vital role in ensuring the reliability, safety, and performance of fluid transfer systems across a wide range of industries. Their use helps to create secure and durable hose assemblies, reducing the risk of leaks or failure in critical systems.
